Specifications about API SPEC 5L

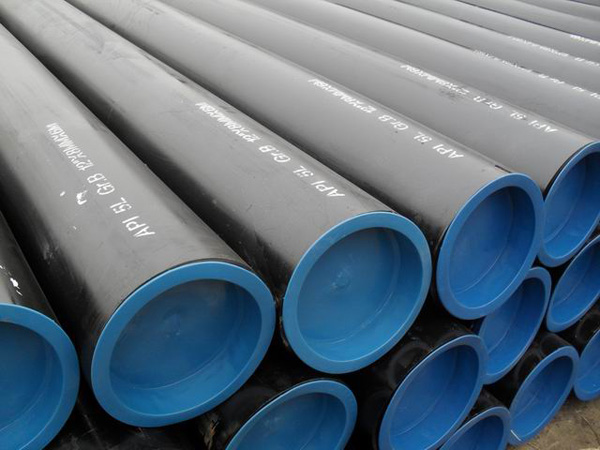

API 5L pipe line

★Standard: API SPEC 5L
★Steel grade:
PSL1: A, B, x42, x46, x52, x56, x60, x65, x70
PSL2: B, x42, x46, x52, x56, x60, x65, xx70, x80
★Dimension:
★SMLS: F10.3~1016x1.7~52mm
★Welding: F219~2134x5~52mm
★Application: transport gas, oil and water as well as in the oil and natural gas industries.


What is the API 5L Pipeline?

API 5L pipeline is widely utilized in transporting petroleum, gas, water as well as in natural gas industry. API 5L refers to the American Petroleum Institute Prepared and Published all over the world.
Petroleum, crude oil, gas, water or natural gas through API 5L pipeline is transported from the underground to the oil and natural gas industry corporation for further processing production. Oil and gas pipeline includes seamless pipe and welding pipe and has three plain end, threaded end and socket end. Steel grade is mainly Grade B, X42, X46, X52, X56, X65, X70, and X80.

Seamless Pipe:

★Steel Grade: B, X42, X52, X60, X65, X70
★Dimension: 1"/2"---24"
★Process: hot rolling, hot expanding
★Steel Grade: B, X42, X52, X60, X65, X70, X80
★Dimension: 5" -- 48"


Welding Pipe

★Steel Grade: B, X42, X52, X60, X65, X70, X80
★Dimension: 2“--30”
★Process: ERW, SSAW, LSAW, HFW, JCOE.

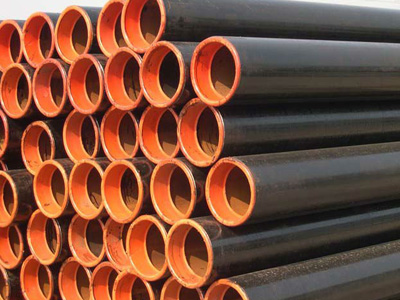

ERW API 5L pipeline ERW API 5L pipeline

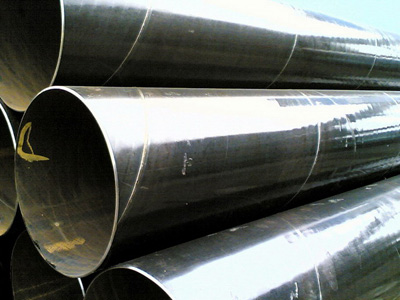

SSAW API 5L pipe line SSAW API 5L pipe line

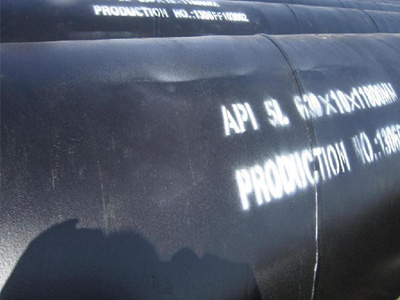

LSAW API 5L line pipe LSAW API 5L line pipe

API 5L PSL 1 Chemical composition and mechanical properties:


Standard
Steel grade		 Chemical Compositions(%) Mechanical Properties
C(max) Mn(max) P(max) S(max) Tensile strength(Mpa) Yield strength(Mpa)
API SPEC 5L B 0.28 1.20   0.030 0.030 414 241
X42 0.28 1.30 0.030 0.030 414 290
X46 0.28 1.40 0.030 0.030 434 317
X52 0.28 1.40 0.030 0.030 455 359
X56 0.28 1.40 0.030 0.030 490 386
X60 0.28 1.40 0.030 0.030 517 414
X65 0.28 1.40 0.030 0.030 531 448
X70 0.28 1.40 0.030 0.030 565 483

API 5L PSL 2 Chemical Composition and Mechanical Properties:


Standard
Steel grade		 Chemical Composition(%) Mechanical Properties
C(max) Mn(max) P(max) S(max) Tensile strength Yield strength
API SPEC 5L B 0.24 1.20 0.025 0.015 414-758 241-758
X42 0.24 1.30 0.025 0.015 414-758 290-758
X46 0.24 1.40 0.025 0.015 434-758 317-758
X52 0.24 1.40 0.025 0.015 455-758 359-758
X56 0.24 1.40 0.025 0.015 490-758 386-758
X60 0.24 1.40 0.025 0.015 517-758 414-758
X65 0.24 1.40 0.025 0.015 531-758 448-758
X70 0.24 1.40 0.025 0.015 565-758 483-758

Dimensions of API 5L Line Pipe

Nominal Size Outside Diameter Wall Thickness Plain-end Weight
inch mm inch mm lb/ft kg/m
0.405 0.405 10.29 0.095 2.4 0.31 0.47
0.54 0.54 13.72 0.088 2.2 0.43 0.62
0.54 13.72 0.119 3.0 0.54 0.79
0.675 0.675 17.15 0.091 2.3 0.57 0.84
0.675 17.15 0.126 3.2 0.74 1.10
0.84 0.84 21.34 0.109 2.8 0.85 1.28
0.84 21.34 0.147 3.7 1.09 1.61
1.05 1.05 26.67 0.113 2.9 1.13 1.70
1.05 26.67 0.154 3.9 1.48 2.19
1.315 1.315 33.4 0.133 3.4 1.68 2.52
1.315 33.4 0.179 4.6 2.17 3.21
1.660 1.660 42.2 0.145 3.7 2.72 3.43
1.660 42.2 0.191 4.9 3.00 4.51
1.900 1.660 42.2 0.382 9.7 5.22 7.77
1.900 48.3 0.145 3.7 2.72 4.07
1.900 48.3 0.200 5.1 3.63 5.43
1.900 48.3 0.400 10.2 6.41 9.58
2 3/8 2.375 60.3 0.109 2.8 2.64 3.97
2.375 60.3 0.125 3.2 3.00 4.51
2.375 60.3 0.141 3.6 6.36 5.03
Nominal Size Outside Diameter Wall Thickness Plain-end Weight
inch mm inch mm lb/ft kg/m
2 3/8 2.375 60.3 0.154 3.9 3.65 5.42
2.375 60.3 0.172 4.4 4.05 6.07
2.375 60.3 0.188 4.8 4.39 6.57
2.375 60.3 0.218 5.5 5.02 7.43
2.375 60.3 0.250 6.4 5.67 8.51
2.375 60.3 0.281 7.1 6.28 9.31
2.375 60.3 0.436 11.0 9.03 13.47
2 7/8 2.875 73.0 0.109 2.8 3.22 4.85
2.875 73.0 0.125 3.2 3.67 5.51
2.875 73.0 0.141 3.6 4.12 6.16
2.875 73.0 0.156 4.0 4.53 6.81
2.875 73.0 0.172 4.4 4.97 7.44
2.875 73.0 0.188 4.8 5.40 8.07
2.875 73.0 0.203 5.2 5.79 8.69
2.875 73.0 0.216 5.5 6.13 9.16
2.875 73.0 0.250 6.4 7.01 10.51
2.875 73.0 0.276 7.0 7.66 11.39
2.875 73.0 0.552 14.0 13.69 20.37
3 1/2 3.5 88.9 0.141 3.6 5.06 7.57
3.5 88.9 0.156 4.0 5.57 8.37
3.5 88.9 0.172 4.4 6.11 9.17
3.5 88.9 0.188 4.8 6.65 9.95
3.5 88.9 0.216 5.5 7.58 11.31
3.5 88.9 0.250 6.4 8.68 13.02
3.5 88.9 0.281 7.1 9.66 14.32
3.5 88.9 0.300 7.6 10.25 15.24
3.5 88.9 0.600 15.2 18.58 27.63
4 4 101.6 0.156 4.0 6.40 9.63
4 101.6 0.172 4.4 7.03 10.55
4 101.6 0.188 4.8 7.65 11.46
4 101.6 0.226 5.7 9.11 13.48
4 101.6 0.250 6.4 10.01 15.02
4 101.6 0.281 7.1 11.16 16.55
4 101.6 0.318 8.1 12.50 18.68
4 1/2 4.5 114.3 0.156 4.0 7.24 10.88
4.5 114.3 0.172 4.4 7.96 11.92
4.5 114.3 0.188 4.8 8.67 12.96
4.5 114.3 0.203 5.2 9.32 13.99
4.5 114.3 0.219 5.6 10.02 15.01
4.5 114.3 0.237 6.0 10.80 16.02
4.5 114.3 0.250 6.4 11.36 17.03
4.5 114.3 0.281 7.1 12.67 18.77

API 5L Steel Line Pipe Mechanical Properties:

API 5L Grade Yield Strength(ksi)
min.		 Tensile Strength(ksi)
min.		 Yield to Tensile Ratio
(max.)		 Elongation(% )
min.
A 30 48 0.93 28
B 35 60 0.93 23
X42 42 60 0.93 23
X46 46 63 0.93 22
X52 52 66 0.93 21
X56 56 71 0.93 19
X60 60 75 0.93 19
X65 65 77 0.93 18
X70 70 82 0.93 17
X80 80 90 0.93 16
